Water tank products
Insulation Water Tank
Product Description

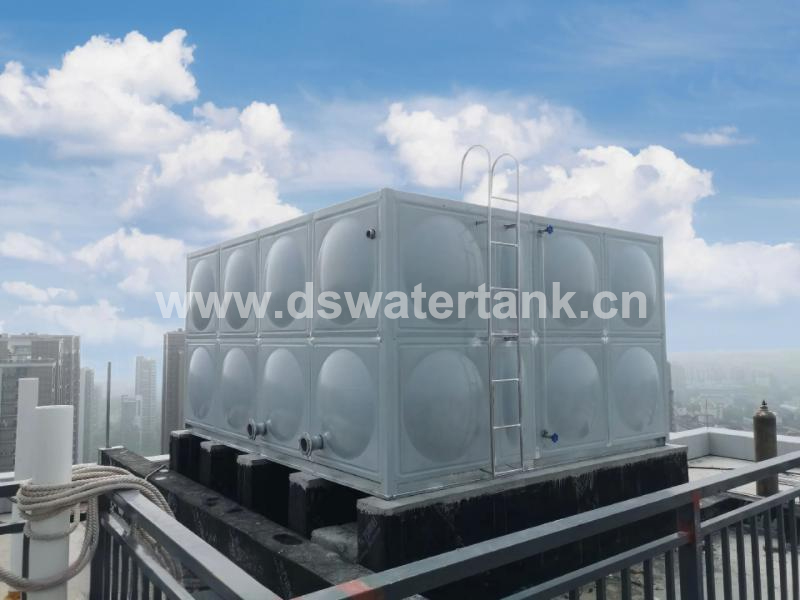

The Insulated Water Tank is equipped with an additional thermal insulation layer installed outside the main tank body, effectively minimizing heat loss and maintaining stable internal water temperature under extreme outdoor conditions. This design prevents freezing in cold regions and reduces excessive heat absorption in hot climates. The system is widely applied in drinking water storage, industrial water supply, cleaning systems, and municipal infrastructure projects, especially in areas with significant temperature variations.
Modular assembly
GRP Water Tank Structure
GRP Water Tank System Includes: GRP panels Internal reinforcement Base support structure Bolted connection system Sealing system Inlet/outlet fittings and accessories
High-Strength GRP Panels
Durable, corrosion-resistant panels for long-lasting water storage.
Reinforced Steel Structure
Strong steel support ensures stability and safe load-bearing.
Leak-Proof Sealing System
Reliable sealing design ensures excellent water tightness.
Insulation Water Tankk Panels
To meet diverse structural and project requirements, our fiberglass water tanks utilize two proven panel designs: convex panels and diamond-shaped panels.
All panels are made of high-quality fiberglass reinforced plastic (GRP) material and manufactured using a hot-pressing process, ensuring excellent strength, corrosion resistance, and a long service life.
Tank Structure
Inner Tank Material: Stainless Steel (SUS304 / SUS316) / GRP / Hot-Dip Galvanized SteelInsulation Layer: High-density integrated polyurethane foam
Outer Cladding: Color steel panel with anti-corrosion coating
Key Advantages
Excellent Thermal Insulation: Low thermal conductivity polyurethane foam, temperature drop ≤3–5°C within 24 hours
Seamless Integrated Foaming: Eliminates thermal bridges and heat leakage
High Structural Strength: Rigid outer shell suitable for outdoor and heavy-duty installations
Cost-Effective Solution: Ideal balance between performance and project budget
Typical Applications
Residential and commercial hot water systems
Hotels, hospitals, schools, and dormitories
Air source heat pump & solar hot water systems
Cold climate and outdoor installations
Rubber Foam Insulation + Aluminum Foil Cladding
Tank Structure
Inner Tank Material: Stainless Steel / GRP / Hot-Dip Galvanized SteelInsulation Layer: High-density rubber foam insulation (B1 fire-retardant grade)
Outer Cladding: Aluminum foil composite protective layer
Key Advantages
Excellent Moisture Resistance: Closed-cell rubber foam prevents condensation
Lightweight Design: Suitable for rooftop and indoor installations
Flexible Assembly: Easy transportation and on-site installation
Clean & Modern Appearance: Ideal for projects with aesthetic requirements
Typical Applications
High-humidity and warm regions
Indoor mechanical rooms and rooftops
Commercial hot water renovation projects
Facilities requiring anti-condensation performance
Insulation Water Tank technical specifications
Insulation Solution
Water Tank Components & Accessories Guide
our values
Design & Installation Support
Packaging and Transportation
Our GRP (FRP) water tanks feature a modular panel design, ideal for overseas shipping. All GRP panels are securely framed with steel frames to prevent damage during long-distance transport. Accessories such as bolts, tie rods, flanges, and rubber seals are individually packaged in sturdy plywood crates. This compact packaging maximizes container capacity, thereby reducing international shipping costs.
FAQ for Insulation Water Tank
An FRP (Fiber Reinforced Plastic), also known as GRP (Glass Reinforced Plastic), water tank is a modular or sectional water storage tank made of fiberglass-reinforced resin panels.
It is widely used for potable water storage, fire fighting systems, industrial water, and municipal projects due to its high strength, corrosion resistance, and long service life.
GRP water tanks offer several advantages:
Corrosion-resistant (no rust, suitable for coastal or chemical environments)
Lightweight but high strength
Modular design, easy transportation and on-site installation
Long service life (20–30 years with proper maintenance)
Low maintenance cost
Food-grade materials available for potable water
Compared with carbon steel or concrete tanks, GRP tanks are more cost-effective over the long term.
Yes. Our GRP water tanks are manufactured using food-grade resin and panels that comply with international drinking water standards.
They are safe for potable water storage and widely used in:
Residential buildings
Hotels & hospitals
Schools
Municipal water supply projects
GRP water tanks use a panel-type modular structure and are assembled on site.
Installation process:
Prepare a concrete or steel foundation
Assemble GRP panels with hot-dip galvanized or stainless steel bolts
Install internal reinforcements and sealing materials
Conduct water leakage test
We provide:
Installation drawings
Technical guidance
Remote or on-site installation support
Yes. GRP water tanks are widely used as fire water storage tanks for:
Industrial plants
Warehouses
Commercial buildings
Power stations
They can be designed to meet fire protection standards and customized with:
Fire water outlets
Manholes
Level indicators
GRP water tanks are shipped in panel form, which:
Saves container space
Reduces transportation cost
Avoids damage during shipping
We support:
LCL and FCL shipments
Export-standard packing
Sea freight solutions to Africa, Middle East, Southeast Asia, Europe, and South America
As a professional GRP water tank manufacturer, we offer:
Stable quality control system
Competitive factory pricing
Rich experience in overseas engineering projects
Fast delivery and technical support
Long-term cooperation for distributors and contractors
We focus on reliable water storage solutions for global markets.
